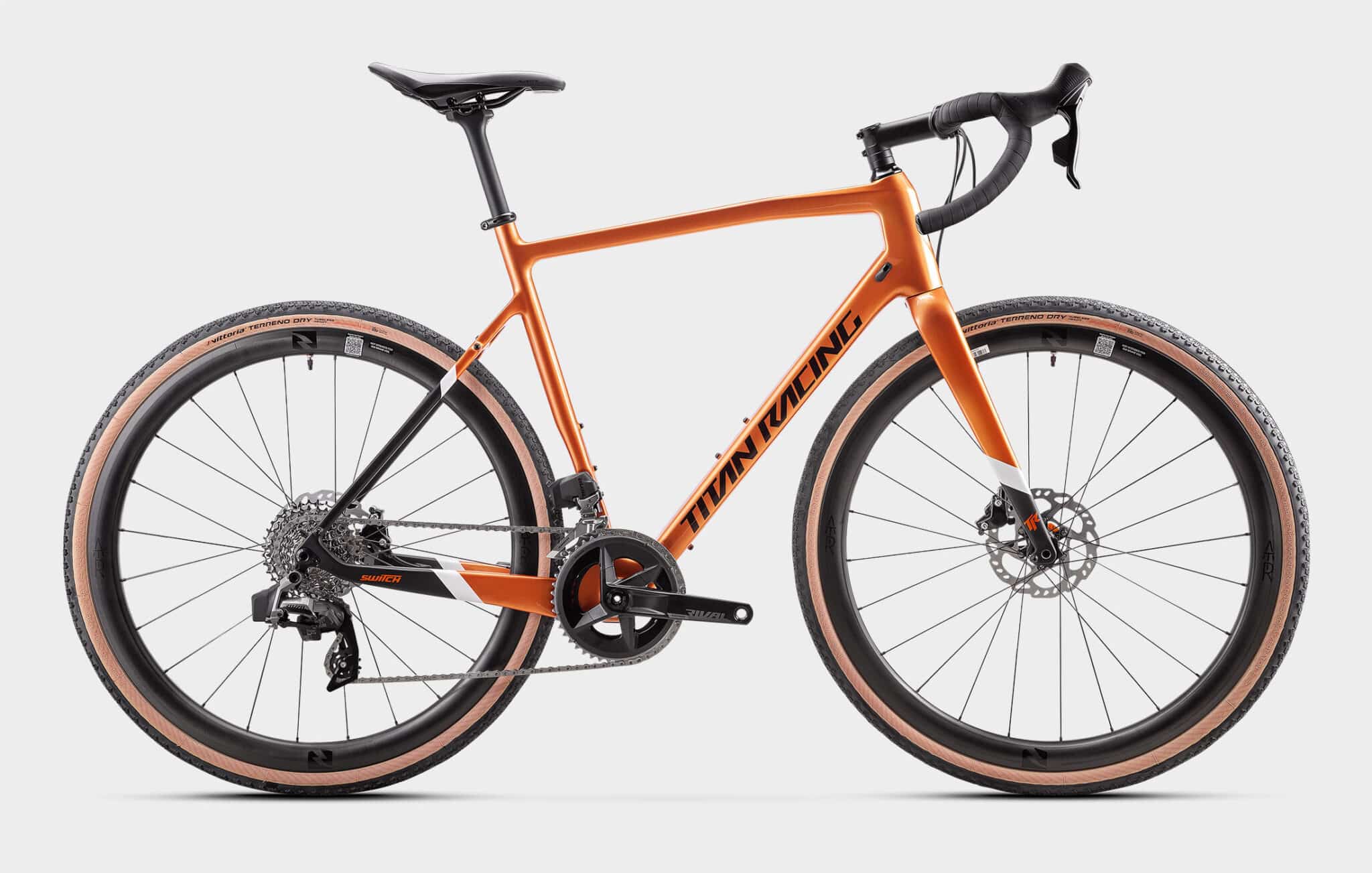

Move seamlessly between tar and dirt with a gravel bike. The Switch range is built on our new carbon gravel frame featuring thru-axles, disc brake mounts and internal cable routing.
Move seamlessly between tar and dirt with a gravel bike. The Switch range is built on our new carbon gravel frame featuring thru-axles, disc brake mounts and internal cable routing.
Original price was: R84,999.95.R78,699.95Current price is: R78,699.95.
| X-Small | Small | Medium | Large | X-Large | |
| CM | 49 | 52 | 54 | 56 | 58 |
| INSEAM | 70-75 | 74-78 | 77-81 | 80-84 | 83-87 |
| HTA | 70,5 | 71 | 71,5 | 72 | 72 |
| HTL | 120 | 140 | 150 | 170 | 190 |
| TTL | 525 | 535 | 545 | 560 | 575 |
| STA (v) | |||||
| STA (a) | 74,5 | 74 | 73,5 | 73 | 72,5 |
| STL | 490 | 520 | 540 | 560 | 580 |
| BBD | 69 | 69 | 69 | 69 | 69 |
| BBH | 284 | 284 | 284 | 284 | 284 |
| WB | 1025 | 1026 | 1027 | 1032 | 1042 |
| CSL | 435 | 435 | 435 | 435 | 435 |
| ATC | 395 | 395 | 395 | 395 | 395 |
| FO | 51 | 51 | 51 | 51 | 51 |
| REACH | 375 | 375 | 377 | 380 | 384 |
| STACK | 538 | 556 | 568 | 589 | 606 |
| Frame size | Sml | Med | Lrg | XL | ` | ||||
| Headset standard | 1-1/8″ 1-1/2” 1-1/2”ACR | ||||||||
| Tire clearance | 700c x 50mm | ||||||||
| Fork offset | 50mm | ||||||||
| Fork length axle to crown | 395mm | ||||||||
| Brake cable length | |||||||||
| Shift cable length | |||||||||
| Water bottles | 2 x750ml | ||||||||
| Internal cable routing | Internal routing including stem and bar, head set. | ||||||||
| Rear axle | 142×12 | ||||||||
| Bottom Bracket | |||||||||
| Brake standard | Flat Mount | ||||||||
